Raspberry Pi iButton system
|Over the years, I have come across various security door access systems such as keypad access, magnetic strip, RFID tags and iButtons. I have found ibuttons and RFID tags to be the most user-friendly. The basic iButton contains just a unique serial number and advanced models contain various amounts of EPROM, EEPROM, NVRAM, clocks, temperature sensors and so on. The iButton is a chip enclosed in a stainless steel can. The steel button can be mounted virtually anywhere because it is rugged enough to withstand harsh environments, indoors or outdoors. It is durable enough to attach to a key fob, ring, watch, or other personal items and used daily for applications such as access control to buildings and computers.
Activate the 1-wire bus driver and the GPIO
chmod a+w /sys/devices/w1_bus_master1/w1_master_slaves
chmod a+w /sys/devices/w1_bus_master1/w1_master_remove
chmod a+w /sys/devices/w1_bus_master1/w1_master_search

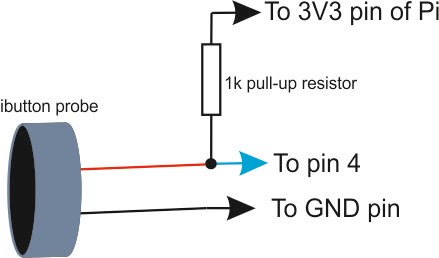

Connect an iButton probe to the Raspberry Pi as shown below. IButton probes are nothing fancy and can be made easily. I chose to buy one from Farnell. Most major online electronic shops sell them.

After the connections has been made, try an ibutton on the probe… and have a look in this folder of the raspberry pi:
/sys/devices/w1_bus_master1/w1_master_slaves
import os import time import datetime as date import sqlite3 as lite import RPi.GPIO as GPIO GPIO.setmode(GPIO.BCM) print(time.strftime("%c")) os.system('modprobe wire timeout=1 slave_ttl=5') os.system('modprobe w1-gpio') os.system('modprobe w1-smem') GPIO.setup(24,GPIO.OUT) base_dir = '/sys/devices/w1_bus_master1/w1_master_slaves' delete_dir = '/sys/devices/w1_bus_master1/w1_master_remove' GPIO.output(24,False) while True: f = open(base_dir, "r") ID = f.read() f.close() inlist = lite.connect('in.db') data = lite.connect('accesslist.db') curs = data.cursor() curs.execute("SELECT * FROM user") cursin = inlist.cursor() now = time.strftime("%c") rows = curs.fetchall() if ID != 'not found.\n': print(ID) for row in rows: if str(ID) ==str(row[1])+"\n": print("Success0") cursin.execute('INSERT INTO listin(name, date) VALUES (?,?)',(row[0],now)) GPIO.output(24,True) inlist.commit() time.sleep(3) GPIO.output(24,False) break else: GPIO.output(24,False) if ID != 'not found.\n': d = open(delete_dir, "w") d.write(ID) inlist.close() data.close() GPIO.cleanup()
I will comment the code when I get some time. For now, happy programming internet people! 🙂
UPDATE
dtoverlay=w1-gpio,gpiopin=4
To speed the reading time:
Edit this file as Sudo
/etc/modprobe.d/w1.conf
Add this text:
options wire timeout=1 slave_ttl=3
We have now made a simplified updated post on the ibutton system. Check it out.
In which file do i put this code?
It’s a python script. So you have to create a .py file and type those code.. and then run it. 🙂
