Wireshark Monitor Mode for Windows 10 PCs and NICs that don’t support it

My system:

  • PC is an Acer Aspire F5-573G with Windows 10 home
  • Adapter Alfa Network AWUS036NH
  • Npcap 0.97: during installation, enable the option to capture monitor mode
  • NDIS driver as in https://amyengineer.com/2017/02/07/capturing-802-11-management-frames-on-windows-using-acrylic-wifi-pro/
  • uninstall WinPcap 4.1.3  its DLLs (wpcap.dll, Packet.dll) C:\WINDOWS\System32 (and also C:\WINDOWS\SysWOW64 for 32-bit apps).
  • run wireshark as Administrator

C:\Program Files\Wireshark>tshark -D
1. \Device\NPF_{95D3AAAC-4317-4F65-9981-CCD97F9CDC1D} (Ethernet)
2. \Device\NPF_{F5D7F3AB-BCA5-4A0A-9226-8E376D4DFBDE} (Wi-Fi)
3. \Device\NPF_{D7825DAE-7456-43C6-9AF5-4E920322BF55} (Wi-Fi 3)
4. \Device\NPF_{6F69818A-0B0A-4E76-BD78-C3E0FE820C64} (Npcap Loopback Adapter)
5. \Device\NPF_{FA58AC56-B6EC-4208-AED8-5682F750E690} (Conexión de área local* 9)
6. \Device\NPF_{29FD7C95-D0B9-4C96-9DCD-82BBD0FE0721} (Conexión de área local* 10)
7. \Device\NPF_{8C189ADC-E23F-4CE8-B989-4E8A228E6911} (Conexión de área local* 8)

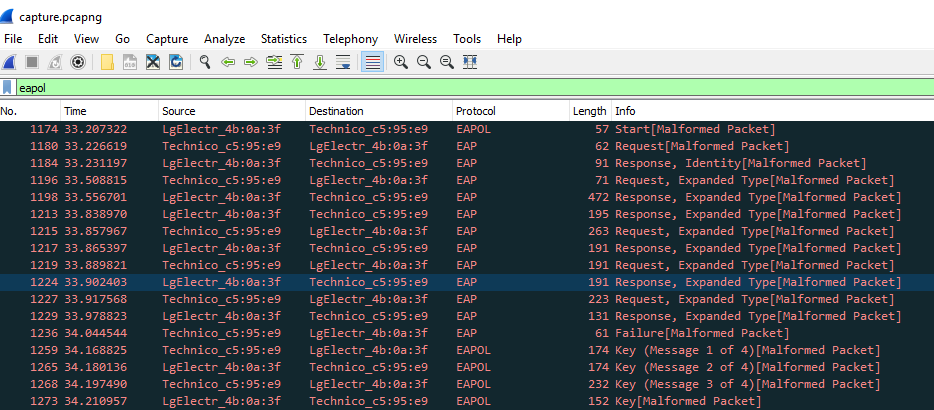

C:\Program Files\Wireshark>tshark -i 3 -I -w C:\pcaps\capture.pcapng
Capturing on ‘Wi-Fi 3’
