TP-Link TL-WR841N/ND: Installing OpenWrt as Wireless Repeater
WiFi repeater are used to extend the coverage area of your WiFi network. It receives your existing WiFi signal, amplifies it and then transmits the boosted signal. With a WiFi repeater you can effectively double the coverage area of your WiFi network.
WiFi is very convenient as it does not require a physical connection to your devices to receive internet but they can on occasion be unreliable if your existing WiFi signal is weak. At BehindTheSciences headquarters, some of our desktop PC are connected to the internet using USB WiFi dongle. Although they are good enough most of the time; they sometimes struggle to get a good strong WiFi signal from our main internet router.
We made an executive decision to upgrade our current network by either investing in a better main router or by using WiFi repeater. We happened to have a few of the TL-WR841ND kicking about from previous research activities and so we decided to convert them into repeaters. The TL-WR841ND cable routers are relatively cheap (Around £18/$26) and open source firmware can be loaded on them.
On this occasion, we decided to install OpenWrt on it as opposed to DD WRT or tomato.
Here is how we came about to configure them:
The very first thing that you need to do is: check the router version. The version of the router is displayed on the back of the router or can be obtained by logging into the router.
- Connect an ethernet cable between the router LAN port(not WAN) and your computer.
- In your favourite browser, enter http://192.168.1.1
You will be welcomed by a login screen; Enter admin for both the user and Password. Then browse to Systems Tools -> Firmware Upgrade.

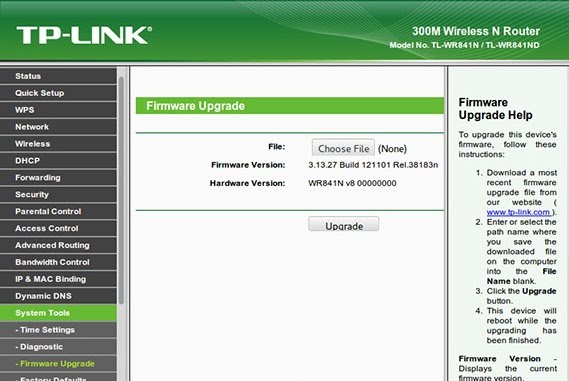

Figure 1: TP-Link Firmware Upgrade Page
The Hardware version will be displayed as shown in Figure 1. In our case, we have a version 8.
The hardware version is also displayed on the back of the router.
Figure 2: TL-WR841N Router sticker
So head over to: https://wiki.openwrt.org/toh/tp-link/tl-wr841nd
Download OpenWrt for a version 8 model.
Figure 3: OpenWrt Page
Download the zip file and extract the contents. The firmware is a .bin format file. Rename the file to: “wr841nv9_wr841ndv9_en_3_16_9_up(150310)”
(The reason for renaming the file is because TP-Link software has a “safety” feature that prevents fake and open source firmware to be installed.)
Now you are ready to upgrade the router firmware to OpenWrt. Head back to the firmware upgrade page as in figure 1, choose the newly renamed file and click upgrade.
The upgrade process will start and the rooter will reboot to the new firmware. Do not disconnect the power during upgrade or you might brick the router.
Once the router reboots, you will be welcomed to the LuCI screen:

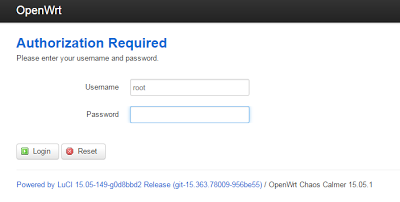

Figure 4: LuCI login screen
Log into the router with Username root and Password admin
- Now head over to Network->Interfaces->LAN
Configure a static IP:
Figure 5: LAN configuration
- Create a bridge in the Physical settings
Figure 6: Bridge settings
Join your existing main WiFi network
- Network-> Wifi-> Scan
Figure 7: WiFi settings
Finally create an AP and link it to the lan interface.
- Network-> Wifi-> Add
Figure 8: WiFi AP settings
That’s it! Happy streaming 🙂
We added some additional forwarding settings:
- Network-> Firewall

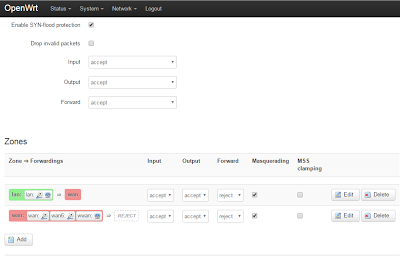

Figure 9: Forwarding settings
Feel free to comment. Any suggestion is most welcome.
